Description
Item # MTP-50-S20B-R
Manufacture – Shineway

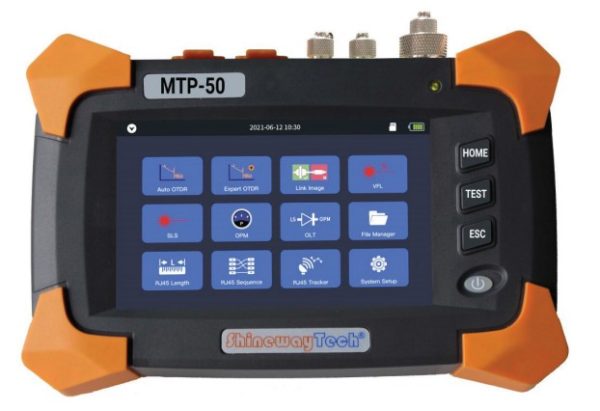

Handheld OTDR, Advanced Version, 1310/1550nm, 28/26dB with built in Visual Fault Locator, Stabilized Laser source, Optical Power Meter, Optical Loss tester, RJ45 cable length, RJ45 cable sequence and RJ45 cable tracker.
Includes: Instrument, SC/UPC connector, Lithium battery, Trace Manager software CD, USB Data cable, AC adaptor, Soft carrying case, Warranty card and Certificate of calibration.
Features:
- Compact, handheld, lightweight, and user-friendly design
- 5-inch capacitive touch screen for easy operation and quick response
- Fast boot-up for efficient fiber troubleshooting and restoration
- Multi-tasking operation for simultaneous OTDR, OPM, and VFL functions
- Dual wavelength testing with a dynamic range of up to 28 dB
- Short distance performance with 1.5m event dead zone and 8m attenuation dead zone
- Various testing functions including Auto OTDR, Expert OTDR, Link Image, and more
- Built-in Stabilized Laser Source, Optical Power Meter, Optical Loss Testing, and VFL
- Optional RJ45 cable testing functions for advanced models
- Pass/Fail assessment and ORL test function
- 8GB memory card for storing over 200,000 test records
- PC software for batch data processing
- USB power charging and data transfer capabilities
- 8 hours of continuous operation or 20 hours on standby
1 Year Factory Warranty
